AP7856

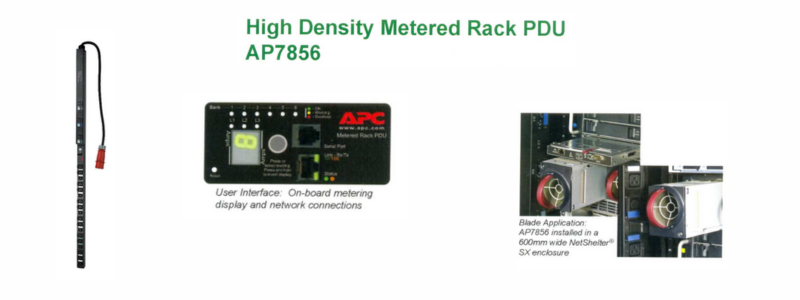

High Density Metered Rack PDU AP7856

Metered rack power distribution unit solves rack- level power needs in a space efficient Zero-U form factor for high density applications.

32A 3-phase, 22kW (EMEA)

• Industry leading OU low profile design allows access to hot swap blade components; first unit with max depth < 75mm
• Six (164) magnetic-hydraulic circuit breaker protected outlet banks
• Comprehensive overload monitoring including current metering on each phase and on each of six load banks
• Network Management Access, configure and manage units from remote locations via web, SNMP and telnet
• Flexible outlet configuration (12) C19 receptacles for high density equipment and (6) C13 for ancillary equipment
• High temperature design for operation up to 60°C
• Color coded outlet banks for easy visual indication and load balancing
